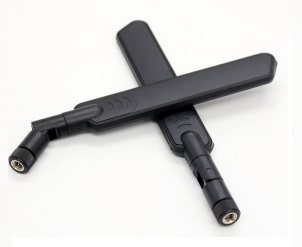

6G Swivel L=172mm
Material
| Material of Plastic | ABS Black |
| Material of Coaxial Cable | RG178 |
Specifcation
| Working Frequency | 400/690~960 /1450~2700/ 3400~3800/ 4900~6000MHz |
| V.S.W.R |
400~960MHz<= 3.5 1450~2690 /3400~3800 4900~6000MHz<2.5 |
| Typical Antenna Gain |
400~960MHz> 2dBi 698~960MHz>3.5dBi 1450~3690/3400~3800 4900~6000MHz>5dBi |
| Polarization | Vertical |
| Impedance | 50 Ohm |
