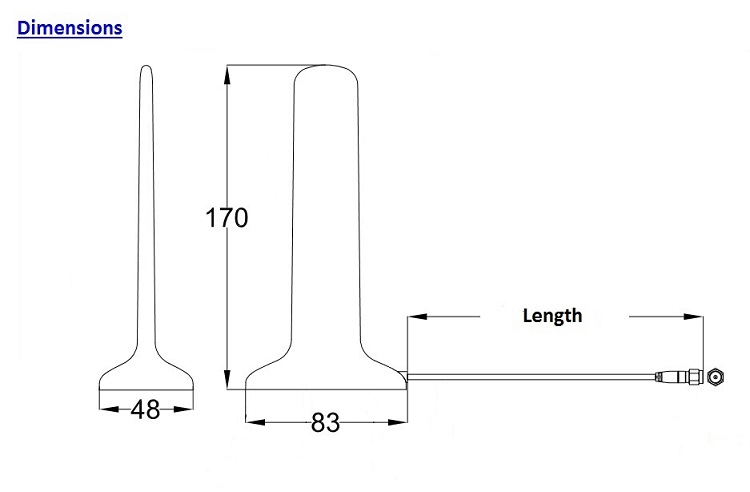

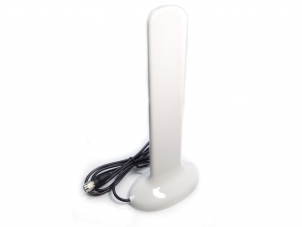

4G Magnetic L=170m

Material

Material of Radiator CU
Material of Plastic PC + ABS
Material of Coaxial Cable RG174/U

Specifcation

Working Frequency 698 ~ 960MHz
1800 ~ 2700MHz
V.S.W.R <= 2.5
Typical Antenna Gain 2.0~5.0 dBi
Polarization Vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA

  • Type

    P

    P: 4G Magnetic

  • Type

    05B

  • Connector

    01

    01: SMA Straight
          Male
    02: SMA R/A Male
    03: SMB Straight
          Female....
          Optional

  • Cable Type

    A

    A: RG174
    B: RG58
    C: RG178
        Optional

  • Cable Length

    1.0

    1.0:1M
          Optional
