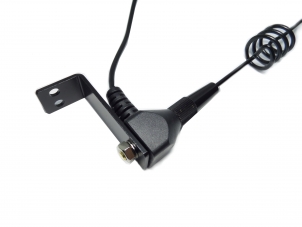

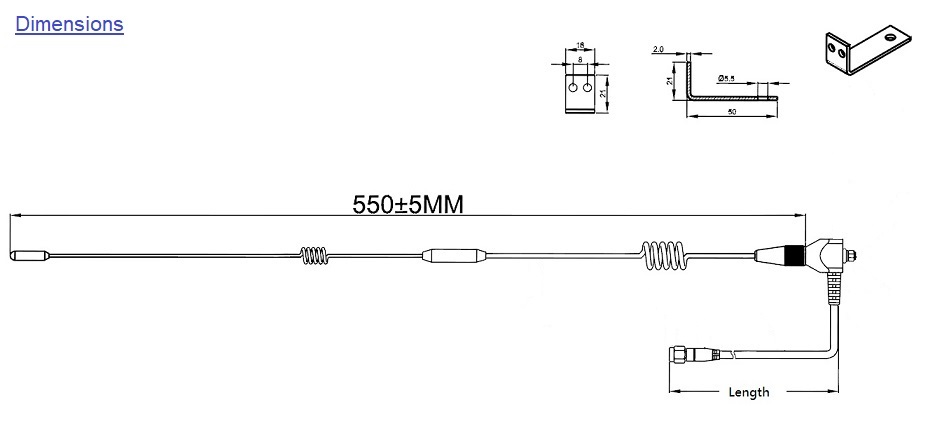

3G Screw L=550mm

Material

Material of Radiator Spring Line
Material of Plastic Body: PVC
Material of Coaxial Cable RG174/U

Specifcation

Working Frequency

824 ~ 960MHz

1710 ~ 2170MHz
V.S.W.R <= 2.5
Typical Antenna Gain 7 dBi
Polarization Vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA

    SA

  • Type

    AS

    AS: GSM /3G
          Screw Type

  • Type

    05E

    05E

  • Connector

    01

    01: SMA Male
    Optional

  • Cable Type

    A

    A: RG174
    Optional

  • Length

    2.5

    2.5: 2.5M
    Optional
