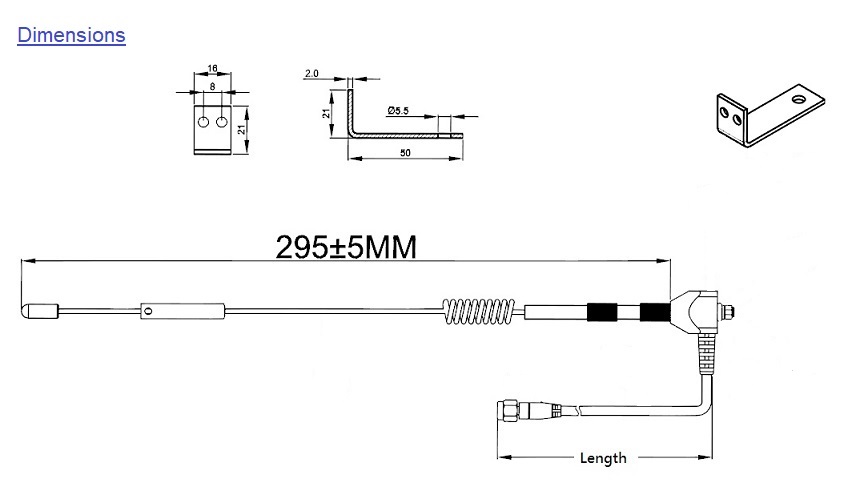

3G Screw Antenna (L=295mm)

Material

Material of Radiator Spring Line
Material of Plastic Body: PVC
Material of Coaxial Cable RG174/U

Specifcation

Working Frequency

824 ~ 960MHz

1710 ~ 2170MHz
V.S.W.R < = 2.5
Typical Antenna Gain 5 dBi
Polarization Vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA

  • Type

    AS

    AS: GSM/3G
          Screw Type

  • Type

    05D

    05D

  • Connector

    01

    01: SMA Male
    Optional

  • Cable Type

    A

    A: RG174...
    Optional

  • Cable Length

    1.0

    1.0:1M
    Optional
