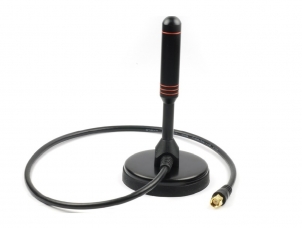

GSM Magnetic Mount

Material

Material of Radiator Spring Line
Material of Plastic Body: ABS

Specifcation

Working Frequency 824 ~ 960MHz
1710 ~ 2170MHz
V.S.W.R <= 3.0
Typical Antenna Gain 3.0 dBi
Polarization Vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA

  • GSM

    A

    GSM/3G

  • TYPE

    05B

  • Connector

    01

    01: SMA Male
    Optional

  • Cable Type

    A

    A:RG174
    Optional

  • Cable Length

    1.0

    1.0: 1M
    Optional
