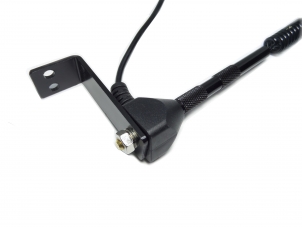

GSM Screw Mount L=295mm

Material

Material of Radiator Spring Line
Material of Plastic Body: PVC

Specifcation

Working Frequency

  824 ~ 960MHz /

1710 ~ 2170MHz
V.S.W.R < = 2.5
Typical Antenna Gain 5 dBi
Polarization vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA

  • TYPE

    AS

    AS: GSM/3G
          Screw Type

  • TYPE

    05D

  • Connector

    01

    01:SMA Male
    Optional

  • Cable Type

    A

    A:RG174
    Optional

  • Cable Length

    1.0

    1.0:1M
    Optional
