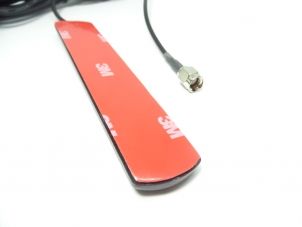

GSM Patch Type

Material

Material of Radiator CU
Material of Plastic ABS

Specifcation

Working Frequency 824 ~ 960MHz
1710 ~ 1990MHz
V.S.W.R 2.0:1
Typical Antenna Gain 0~3.0 dBi
Polarization vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA63

  • Connector

    01

    01:SMA Male
    Optional

  • Cable Type

    A

    A:RG174
    Optional

  • Cable Length

    1.0

    1.0: 1M
    Optional
