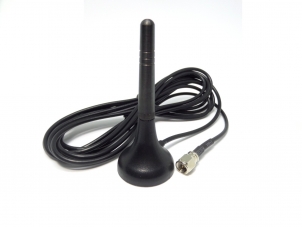

GSM Magnetic Mount

Material

Material of Radiator Spring Line
Material of Plastic Body:ABS

Specifcation

Working Frequency 870 ~ 960MHz
1710 ~ 1880MHz
V.S.W.R ≦ 2.0：1
Typical Antenna Gain 0-1 dBi
Polarization Vertical
Impedance 50 Ohm

How to order

  • Series No.

    SA61

  • Connector

    01

    01:SMA Male
    Optional

  • Cable Type

    A

    A:RG174
    Optional

  • Cable Length

    1.0

    1.0: 1M
    Optional
