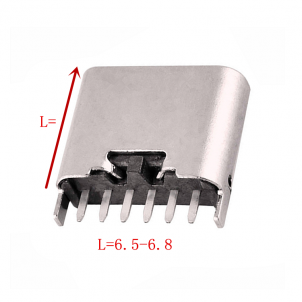

USB Type C 6pin Female Vertical Dip Type

Material

Insulator: LCP +30% GF, UL94V-0
Contact: C18140, T=0.12mm Gold Plated
Shell: Stainless steel, Nickel Plated

RoHS compliant

Specifcation

Contact Resistance: 40 Ω Max.
Insulator Resistance: 100M. Min.
Current Rating: 3A
Operating Temperature: -25℃ to + 85℃.
Dielectric Withstanding Vol.: 100V AC R.M.S.

How to order

  • Series No.

    A25

  • Type

    F

    M: Male
    F: Female

  • Pin Type

    V

    D: Dip
    M: SMT
    V: Vertical Dip
    V2: Vertical SMT
    E: Embedded
    S: Straddle
    DM: Dip & SMT

  • Dimensions

    B

  • No. of Pins

    6

    6: 6 Pins

  • Plating

    G

    G: Gold Flash
    G3: Gold 3u"
    G5: Gold 5u"
    G10: Gold 10u"
    G15: Gold 15u"
    G30: Gold 30u"

  • Insulation color

    B

    B: Black

  • Packing

    R

    R: Tape & Reel
    T: Tube
