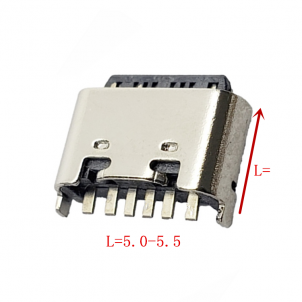

USB Type C 6pin Female Vertical Dip Type

Material

Insulator: LCP +30% GF, UL94V-0
Contact: C18140, T=0.12mm Gold Plated
Shell: Stainless steel, Nickel Plated

RoHS compliant

Specifcation

Contact Resistance: 40 Ω Max.
Insulator Resistance: 100M. Min.
Current Rating: 3A
Operating Temperature: -25
 to + 85℃.
Dielectric Withstanding Vol.: 100V AC R.M.S.
