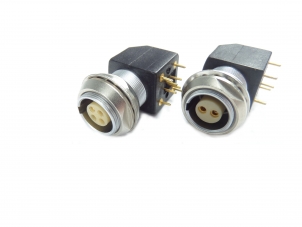

Elbow Socket for PCB
Material
Brass shell and collect nut, nickel plated brass.
Contact: Brass (gold plated)
Insulator:PPS
Specifcation
Contact Type: PCB
Contact Dia.: 0.9 mm(0.035")
Welding Needle Dia:0.6mm (0.024")
R (max): 6.0 mOhm
Vtest(contact-shell): 1050V
Vtest (contact-contact): 1300V
Rated Current: 10A (AC/DC)
IP Rating: 50
