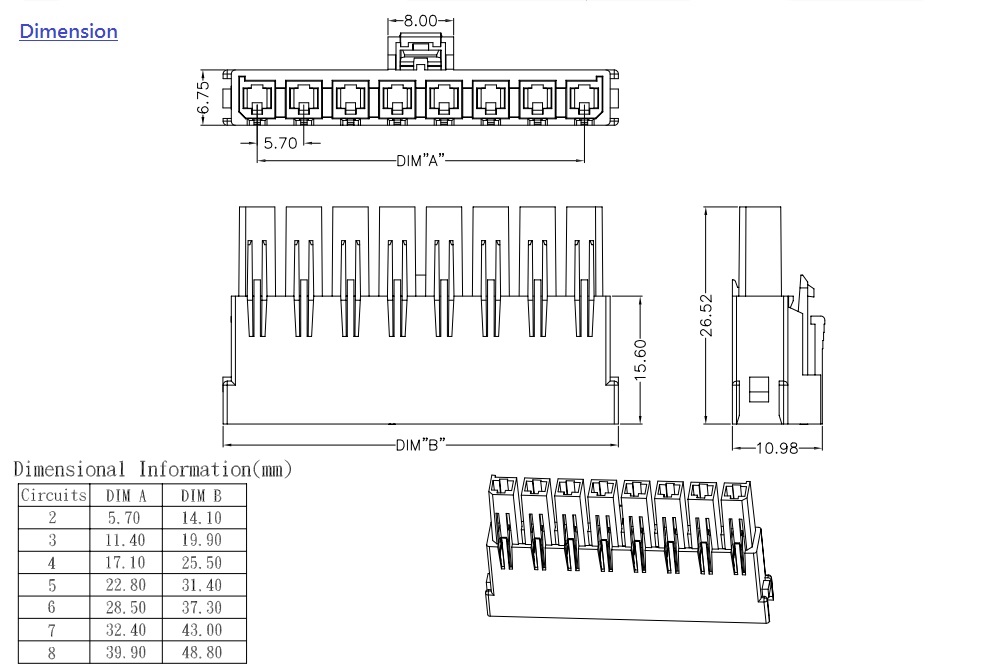

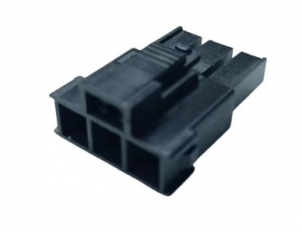

5.70mm Housing/Terminal Mega Fit (Higher-Amperage Connector)

Material

Nylon 66 UL94V-0

Specifcation

Current rating: 23A~16A at 12AWG,21A~13A at 14AWG,17A~12A at 16 AWG,
Voltage rating: 600V AC(RMS) or 600V DC Max.
Contact resistance: 10mΩ Max.

Insulation resistance: 100MΩ Min.

Dielectric strength: 2200V AC/minute

How to order

  • Series No.

    E57

    5.7mm Housing

  • Type

    HS

    **Housing**
    HS: Housing               Single Row

    **Terminals**
    Single Housing:
    TS1: #14~#16
    TS2: #12

  • No. Of Pins

    03

    02~08

  • Package

    B

    B: Bag
    R: Tape & Reel
