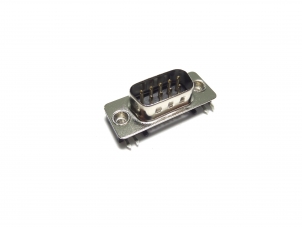

D-Sub SMT SLIM R/A
Material
| Insulator: PBT + GF (UL94V-0) Contact: Brass or Phosphor Bronze RoHS compliant |
Specifcation
Contact Resistance: 30Ω Max. AT 1 AMP
Insulator Resistance: 1,000Ω Min. AT 500V DC
Current Rating: 1 AMP
Operating Temperature: -55℃ to +105℃
Dielectric Withstanding Vol.: 500 Vac Rms Min.
