Sherwood Electronics Ltd.

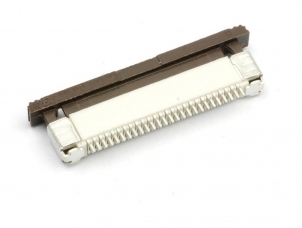

0.50mm R/A SMT ZIF

Material

Insulator: PBT + 30% GF (UL94V-0)
Contact: Phosphor Bronze
RoHS Compliant

Specifcation

Contact Resistance: 10Ω Max. AT 1 AMP
Insulator Resistance: 5,000Ω Min. AT 500V DC
Current Rating: 1 AMP
Operating Temperatue: -55℃ TO +105℃
Dielectric Withstanding Vol.: 500 Vac Rms Min.

How to order

Series No.

G23
No. of Pins

15

04 ~ 50
Plating

T

T: Tin
Entry Type

T

T: R/A Top
B: R/A Bottom
Housing Height

A

A: 2.00mm
B: 1.20mm
Package

R

T: Tube
R: Tape & Reel
