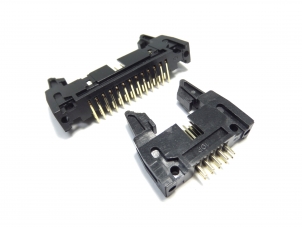

2.54mm Latched Header

Material

Insulator:  PBT + GF (U94V-0)
Contact:  Brass or Phosphor Bronze
RoHS compliant


Specifcation

Contact Resistance:  30Ω Max. AT 1 AMP
Insulator Resistance:  1,000Ω Min. AT 500V DC
Current Rating:  1 AMP
Operating Temperature:  -55℃ to +105℃
Dielectric Withstanding Vol.:  500 VAC Rms Min.

Mate with: F20

How to order

  • Series No.

    F21

  • No. of Pins

    34

    10~64

  • Plating

    G

    S: Selective
    G: Gold Flash
    T: Tin
    G15: 15u"Gold

  • Pin Type

    S

    S: Straight
    R: Right Angle
    M: SMT

  • Color

    B

    B: Black
    G: Grey

  • Eject Type

    1

    1: Long Eject
    2: Short Eject
    3: w/o Eject
