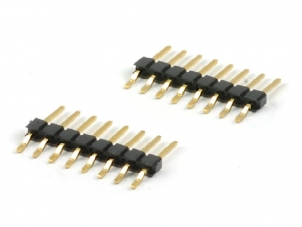

2.54mm Pin Header R/A + SMT

Material

Insulator :  PBT + GF (UL94V-0)
or Nylon or LCP
Contact:  Brass or Phosphor Bronze
RoHS Compliant

Specifcation

Contact Resistance:  30Ω Max. AT 1 AMP
Insulator Resistance:  1,000Ω Min. AT 500V DC
Current Rating:  1 AMP
Operating Temperature:  -55℃ to +105℃
Dielectric Withstanding Vol.:  500 Vac Min

Mate with: B24G

How to order

  • Series No.

    B20S

  • Row Type

    1

    1: Single
    2: Double

  • Pins Per Row

    40

    1~40

  • Plating

    S

    S: Selective
    T: Tin
    G: Gold

  • Housing

    L

    L: LCP
    B: PBT
    N: Nylon

  • Contact

    B

    B: Brass
    P: Phos. Bronze

  • Post

    2

    blank: w/o
    2: with

  • Cap

    C

    blank: w/o
    C: with

  • Package

    R

    blank: Tube
               or Tray
    R: T&R

  • Dimension

    B

    Optional
