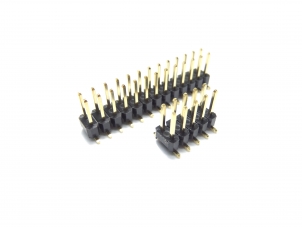

2.54mm Pin Header

Material

Insulator: PBT or Nylon + 30% GF (UL94V-0)
Contact: Brass or Phosphor Bronze
Lead-Free avialable upon request
RoHS compliant

Specifcation

Contact Resistance: 30mΩ Max. AT 1 AMP
Insulator Resistance: 1,000MΩ Min. AT 500V DC
Current Rating: 1 AMP
Operating Temperature: -55℃ to +105℃

Dielectric Withstanding Vol.: 500 VAC Min.

Mate with: B24 / B50

How to order

  • Series No.

    B20

  • Row Type

    1

    1: Single
    2: Double
    3: Triple
    1R: Single R/A
    2R: Double R/A
    1M: Single SMT
    2M: Double SMT

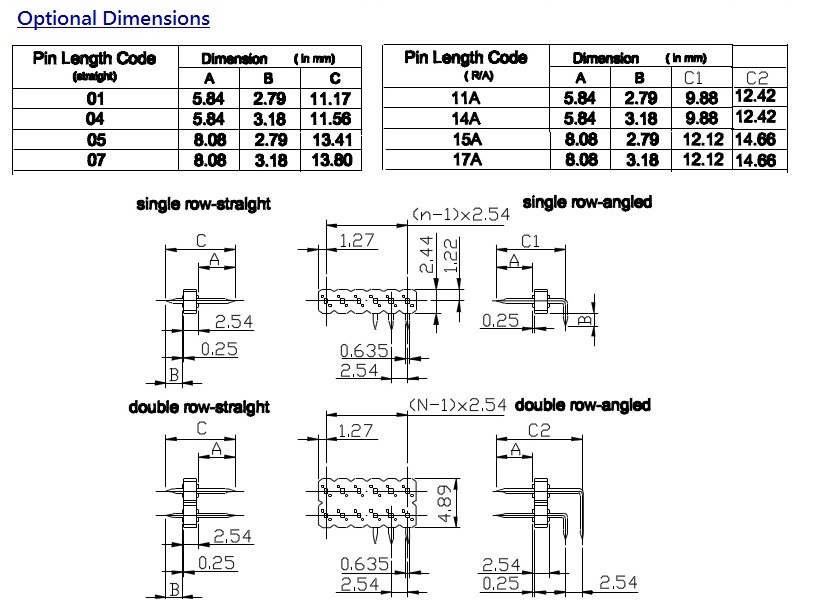

  • Length

    04

    01~07
    11~17
    More available
    upon request

  • Contact

    0

    0: Brass
    5: Phos. bronze

  • No. of Pins

    40

    1 ~ 40
    2 ~ 80

  • Pitch

    1

    1: 2.54mm
    2: 5.08mm

  • Housing H

    0

    0: 2.54mm
    1: 1.50mm
    2: 1.70mm

  • Plating

    2

    1: Tin
    2: Gold
    3: Selective
    4: 30u Gold
    7: Gold Lead Free
    8: Tin Lead Free


  • Cap

    2

    blank: w/o Cap
    2: with Cap

  • Package

    T

    blank : Bag
    T : Tube
    T1: Tray
    R: T&R
