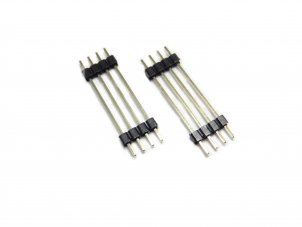

1.27mm Pin Header Board Spacer

Material

Housing: Nylon-6T(UL94V-0)
Contact: Brass or Phos. Bronze
RoHS Compliant

Specifcation

Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min.
Contact Resistance: 20 Milliohms Max.
Dielectric Withstanding: AC 500V
Max. Processing Temp.: 230C for 30-60sec.

Mate with: B34

How to order

  • Series No.

    B22B

  • Row

    1

    1: 1Row
    2: 2Rows

  • Pins Per Row

    40

    2~40

  • Plating

    G

    G: Gold Flash
    G10: 10u"gold
    G30: 30u"gold
    S: Selective
    T: Tin

  • Pin Type

    S

    S: Straight
    M: SMT

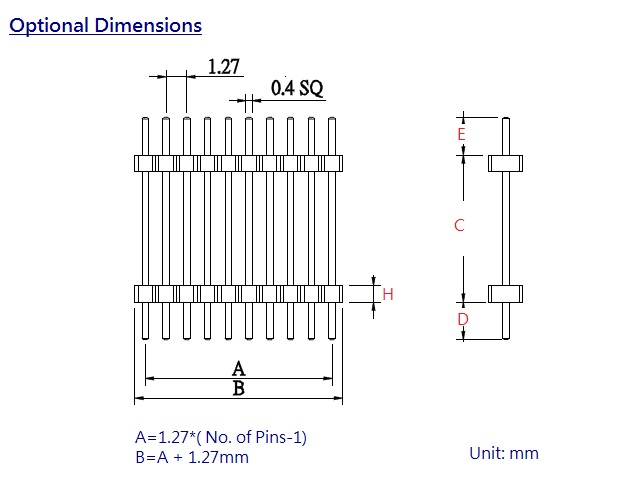

  • Dimensions

    1

    Optional

  • Housing

    B

    A: 2.54mm
    B: 1.70mm
    C: 1.00mm

  • Cap

    1

    1: w/o
    2: with

  • Post

    1

    1: w/o
    2: with

  • Package

    T

    T: Tube
    R: T&R
