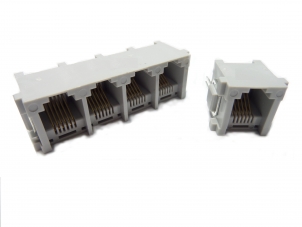

Top Entry DIP Unshielded Multi-port

Material

Housing: PBT 20% Glass Filled(UL 94V-0)
Color: Black / Medium Gray Color
Spring Wire: 0.45mm Diameter Phos. Bronze

Plating: Gold over Nickel
RoHS Compliant

Specifcation

Insulation Resistance: 500M-Ohm Min.
Contact Resistance: 20M-Ohm Max.
Rating Current: 1.5A Min.
Dielectric Voltage: 1,000RMS 60sec. Min.

How to order

  • Series No.

    M15B

  • Ports

    2

    1: 1
    2: 2
    ....
    8: 8

  • No. of Position

    6

    6: 6
    8: 8

  • Contacts

    6

    2: 2
    4: 4
    6: 6
    8: 8

  • Plating

    G6

    G6: 6u
    G15: 15u
    G30: 30u
    G50: 50u

  • Metal Post

    1

    1: w/o
    2: with
