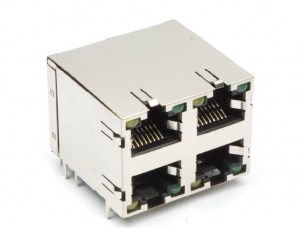

Side Entry DIP Shielded LED Multi-port

Material

Housing: PBT 20% Glass Filled (UL94V-0)
Color: Black
Spring Wire: 0.35mm Thickness Phos. Bronze
Gold Plating over Nickel
RoHS Compliant

How to order

  • Series No.

    M91

  • No. of Ports

    1

    1: 2*1
    2: 2*2
    3: 2*3

  • No. of Pins

    8

    8: 8Pins

  • Contacts

    8

    6: 6
    8: 8

  • Plating

    S6

    Selective Gold
    S6  : 6u
    S15: 15u
    S30: 30u
    S50: 50u

  • LED1

    Y

    Single
    Y: Yellow
    R: Red

  • LED2

    G

    Single
    G: Green
    Y: Yellow

  • Ground

    N1

    N1 ~ N4
    (Data sheet)
