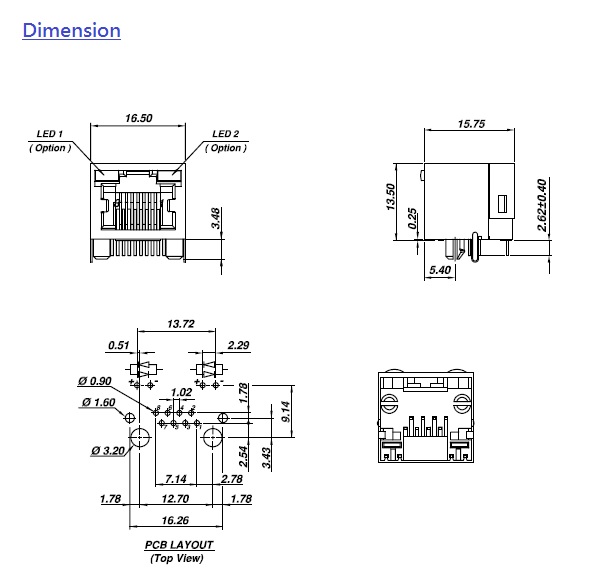

Side Entry DIP Shielded with LED Multi-port H=13.46mm D=15.75mm

Material

Housing: Thermoplastic Polyster (UL94-0)
Contact: Phosphor Bronze
Plating: Standard 50u" Selective Gold
RoHS Compliant


How to order

  • Series No.

    ML

  • Type

    D

    D: Dip
    S: SMT

  • No. of Positions

    8

    8: 8Pos.

  • Contacts

    8

    8: 8Contacts

  • Plating

    S6

    S6: 6u"gold
    S15: 15u"gold
    S30: 30u"gold
    S50: 50u"gold

  • Color of LED1

    B2

    Bi-Color
    A1: Red/Yellow
    A2: Green/Orange

    Single Color
    B1:  Red
    B2:  Green
    B3:  Yellow

  • Color of LED2

    B3

    Bi-Color
    A1: Red/Yellow
    A2: Green/Orange

    Single Color
    B1: Red
    B2: Green
    B3: Yellow

  • No. of Ports

    1

    1: 1*1Ports
    2: 1*2Ports
    .....
    8: 1*8Ports

  • Shielded

    S

    S: Shielded
    U: Unshielded

  • Transformer

    blank: w/o trans.
    Tx: with trans.
