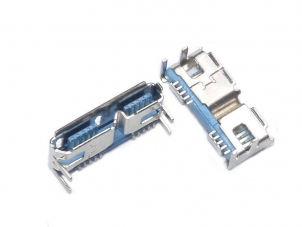

USB 3.0 Micro B

Material

Insulator UL94V-0 Blue
Contact Copper Alloy
Shell SPCC
RoHS compliant

Specifcation

Contact Resistance: 30 Ω Max.
Insulator Resistance: 100  Min.
Current Rating: 1.5 AMP Min.
Environmental: -55℃ to +105℃
Dielectric Withstanding Vol.: 500Vac Min.

Voltage 30VACR.M.S

How to order

  • Series No.

    A40

  • Type

    F

    Femal

  • No. of Pin

    10

    10pin

  • Type

    M

    M:SMT
    M1: 180 SMT
    R: Right Angle
    S: Straight

  • Contacts Plating

    G

    G: Gold Flash
    G3: Gold 3u"
    G5: Gold 5u"
    G10: Gold 10u"
    G15: Gold 15u"..

  • Color

    Blank : Blue
    Black : B
