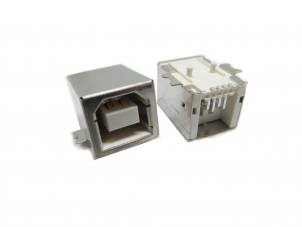

USB Type B SMT

Material

Insulator: PBT + GF or Nylon (UL94V-0)
Contact: Phosphor Bronze
Shell: Phosphor Bronze
RoHS Compliant



Specifcation

Contact Resistance: 30Ω Max. AT 1 AMP
Insulator Resistance: 1,000Ω Min. AT 500V DC
Current Rating: 1 AMP
Operating Temperature: -55℃ to +105℃
Dielectric Withstanding Vol.: 500 Vac Min.



How to order

  • Series No.

    A21-B

  • Pin Type

    M

    M: SMT

  • Stacked Option

    S

    S: Single
    (not stacked)

  • Version

    B1

    USB2.0
    B1: Gold Flash
    B2: 15u" Gold
    B3: 30u" Gold

  • Housing Color

    B

    blank: White
    B: Black

  • Material

    N

    blank: PBT
    N: Nylon
