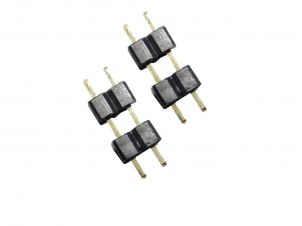

2.00mm Pin Header Board Spacer

Material

Contact Material: Brass
Insulator Material: Polyester, UL94V-0
Standard: Nylon 6T


Specifcation

Current Rating: 1Amp
Insulator Resistance: 5000 Megohms Min.
Contact Resistance: 20 Milliohms Max.
Dielectric Withstanding: AC 500V
Operating Temperature: -40℃ to + 105℃

Mate with: B44 / B47

How to order

  • Series No.

    B22A

  • Row

    1

    1: 1Row
    2: 2Rows

  • Pins of Row

    40

    2~40

  • Plating

    G

    G: Gold flash
    G10: 10u Gold
    G30: 30u Gold
    T: Tin
    S: Selective

  • Pin Type

    S

    S: Straight
    M: SMT

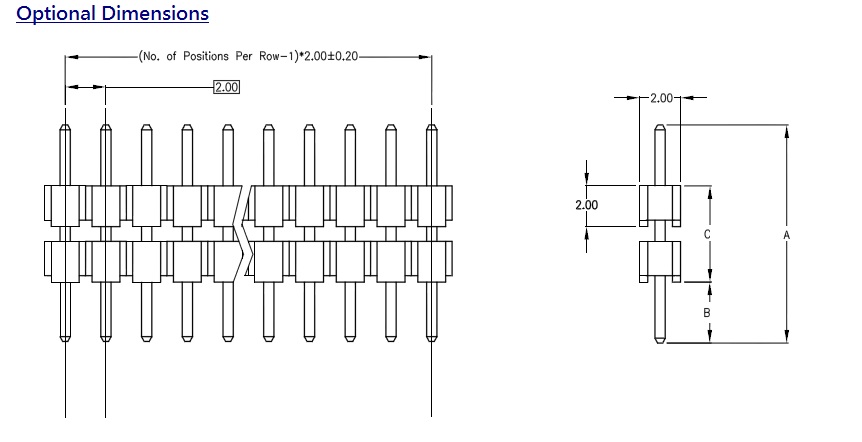

  • Dimension

    1

    1~
    Optional

  • Housing H

    D

    C: 2.00mm
    D: 1.50mm

  • Cap

    1

    1: w/o
    2: with

  • Post

    1

    1: w/o
    2: with

  • Package

    R

    blank: Tube or
               Tray
    R: Tape & Reel
