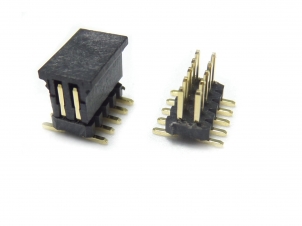

1.27mm Pin Header SMT

Material

Insulator:  Nylon + GF (UL94V-0)
High temperature resistance
Contact:  Brass or Phosphor Bronze
RoHS Compliant

Specifcation

Contact Resistance:  30Ω Max. AT 1 AMP
Insulator Resistance:  1,000Ω Min. AT 500V DC
Current Rating:  1 AMP
Operating Temperature:  -40to +105
Dielectric Withstanding Vol.:  500 Vac Min.

Mate with: B34
