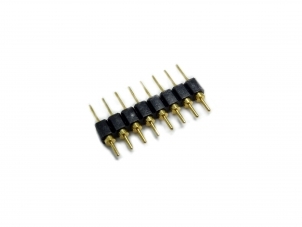

2.54mm Pin Header Machined Pin

Material

Insulator:  PBT + GF (UL94V-0)
Contact:  Brass or Phosphor Bronze
RoHS Compliant

Specifcation

Contact Resistance: 3 0Ω Max. AT 1 AMP
Insulator Resistance:  1,000Ω Min. AT 500V DC
Current Rating:  1 AMP
Operating Temperature:  -55℃ to +105℃

Dielectric Withstanding Vol.:  500 Vac Min.

Mate with: B24M

How to order

  • Series No.

    B20M

  • Row Type

    1

    1: Single
    2: Double

  • Pins Per Row

    40

    1~40

  • Length

    L1

    L1: 10mm
        (3.5+H3.0+3.1)
    L2: 11.96mm
        (5.0+H3.0+3.1)

  • Plating

    G

    Blank: Gold flash/SN
    G: Gold
    G15: Gold 15u"
